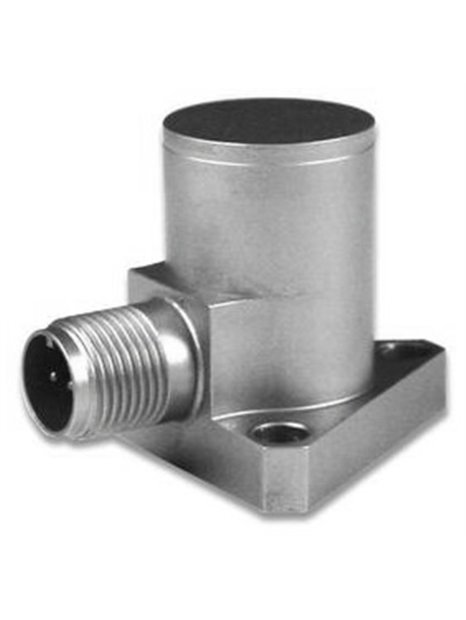

PCB-357C72
    zoom_out_map

      PCB-357C72

    • Vibration sensor with charge output,
    • Continuous use temperature up to 482 ° C,
    • Decay,
    • Measuring range 500 g
    • Sensitivity 50 pC/g,
    • Upper limit frequency 2.500 Hz,
    • 2-pin female connector on the side
    • basic data
      sensitivity (±5%)50 pC/g5.1 pC/(m/s²)
      range±500 g pk ±4. 905 m/s 2 pk
      frequency range (±5%)2,500 Hz[4]
      Resonance frequency≥ 13,000 Hz
      Linearity≤ 1%[1]
      transverse acceleration sensitivity≤ 5%[3]
      Conditions of use
      Overload limit (shock)±2. 000 g pk±19. 620 m/s² pk
      Temperature range-65 … 900 ° F-54 … 482 ° C
      strain sensitivity (footprint)0.033 g/µε 0.32 (m/s²)/µε[2]
      maximum radiation exposure (integrated neutron flux)10.000.000.000 N / cm 2
      maximum Radiation effect(integrated gamma River)100,000,000 wheel
      Technical
      capacity (from pin to pin)945 pF[2]
      capacity (of pin housing)26 pF[2]
      capacity (asymmetry between the pins)≤ 2 pF
      insulation resistance (from pin to pin at 21 ° C)> 1000 M Ω
      Insulation resistance (from pin on housing at 21 ° C)≥ 100 MΩ[2]
      insulation resistance (from pin to pin 482 ° C)> 100 kΩ
      output polaritydifferential
      physical properties
      sensor elementceramic
      Sealinghermetically sealed
      size - height1.25 in31.8 mm
      size -. Diameter0.75 in19 mm
      dimensions3.15 oz90 grams[2]
      wiring7/16-272-pin
      connection positionside
      mounting3 holes
      notes
      [1]zero-based balancing line, determined using the method of least squares
      [2]typically
      [3]Transverse acceleration sensitivity typically ≤ 3%
      [4]the lower cut-off frequency depends on the used signal conditioning electronics.
      Equipment
      081A99screw-3
      ACS-1frequency response, rückf ührbar on NIST (10 Hz up to the upper 5% point)-1
