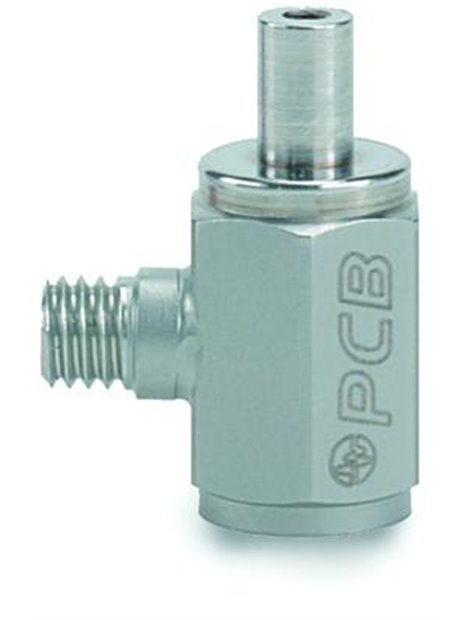

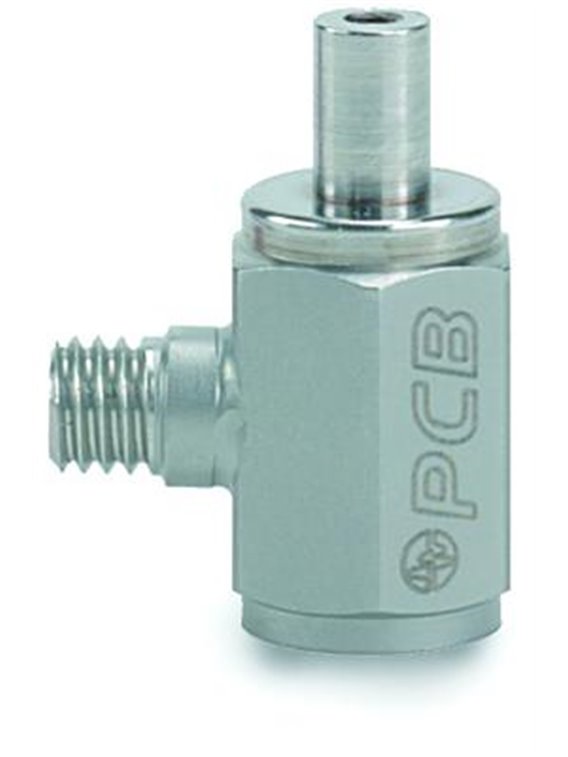

PCB-209C12
Miniature ICP® force sensor, 10 sec DTC, 2.2 lb comp., 1 lb tension, 2200 mV/lb
- Measurement Range: 2.2 lb (0.00979 kN)
- Sensitivity: (±15%)2200 mV/lb (494604 mV/kN)
- Low Frequency Response: (-5%)0.05 Hz
- Upper Frequency Limit: 30000 Hz
- Temperature Range: -65 to +250 °F (-54 to +121 °C)
- Mounting Thread: 10-32 Female (No Metric Equivalent)
Specification Notes
[1] Typical.
[2] Calculated from discharge time constant.
[3] Estimated using rigid body dynamics calculations.
[1] Typical.
[4] See PCB Declaration of Conformance PS023 for details.
English: | SI: | ||
---|---|---|---|
Performance | |||
Sensitivity (±15 %) | 2200 mV/lb | 494604 mV/kN | |
Measurement Range (Compression) | 2.2 lb | 0.00979 kN | |
Measurement Range (Tension) | 1.0 lb | 0.00445 kN | |
Maximum Static Force (Compression) | 11.0 lb | 0.0489 kN | |
Maximum Static Force (Tension) | 1.0 lb | 0.00445 kN | |
Broadband Resolution (1) | 0.00002 lb-rms | 0.00009 N-rms | [1] |
Low Frequency Response (-5 %) | 0.05 Hz | 0.05 Hz | [2] |
Upper Frequency Limit | 30000 Hz | 30000 Hz | [3] |
Environmental | |||
Temperature Range | -65 to +250 °F | -54 to +121 °C | |
Temperature Coefficient of Sensitivity | ≤0.05 %/°F | ≤0.09 %/°C | |
Electrical | |||
Discharge Time Constant (at room temp) | ≥10 sec | ≥10 sec | |
Excitation Voltage | 18 to 30 VDC | 18 to 30 VDC | |
Constant Current Excitation | 2 to 20 mA | 2 to 20 mA | |
Output Impedance | ≤100 Ohm | ≤100 Ohm | |
Output Bias Voltage | 8 to 12 VDC | 8 to 12 VDC | |
Spectral Noise (1 Hz) | 0.0000123 lb/√Hz | 0.0000548 N/√Hz | [1] |
Spectral Noise (10 Hz) | 0.000000940 lb/√Hz | 0.00000420 N√Hz | [1] |
Spectral Noise (100 Hz) | 0.000000389 lb/√Hz | 0.00000174 N/√Hz | [1] |
Spectral Noise (1000 Hz) | 0.0000000650 lb/√Hz | 0.000000292 N/√Hz | [1] |
Output Polarity (Compression) | Positive | Positive | |
Physical | |||
Stiffness | 2 lb/µin | 0.35 kN/µm | [1] |
Size - Hex | 0.372 in | 9.53 mm | |
Size - Height | 0.83 in | 21.08 mm | |
Weight | 0.29 oz | 8.2 gm | |
Housing Material | Stainless Steel | Stainless Steel | |
Sealing | Hermetic | Hermetic | |
Electrical Connector | 10-32 Coaxial Jack | 10-32 Coaxial Jack | |
Electrical Connection Position | Side | Side | |
Mounting Thread | 10-32 Female | No Metric Equivalent |
* All specifications are at room temperature unless otherwise specified.
Accessories
Supplied | ||
081A05 | Mounting stud, 10-32 to 10-32 x 0.27" long, BeCu (H900), no shoulder | 1 |
084A38 | Thermal boot (for Series 209) | 1 |
Optional Versions
(M) Metric Mount
Accessories: | |||
---|---|---|---|
Supplied | M081A05 | Mounting Stud 10-32 to M6 x 0.75 x 0.27" long BeCu (H900), no shoulder | 1 |
(W) Water Resistant Cable
English | SI | |
---|---|---|
Electrical Connector | Sealed Cable | |
Electrical Connection Position | Side |
