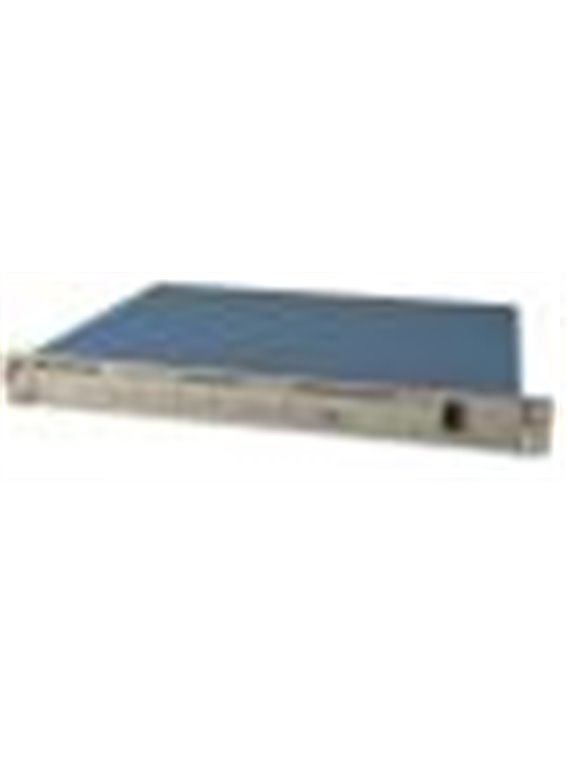

PCB-483C40
    zoom_out_map

      PCB-483C40

    • 8-channel supply unit,
    • Inputs: ICP®, voltage and load,
    • Continuous gain of 0.1 …?200 ?,
    • BNC-inputs and outputs,
    • Ethernet interface,
    • TEDS Support,
    • Adjustable low-pass filter
    • basic data
      number channels8
      sensor typeICP, voltage, charge
      Verstä rkungsfaktor (ICP®-/ voltage input)0, 1 x …?200 ?
      gain (charge input) (mV/pC)0.01 … 2.000
      Step width of the gain setting (ICP®-/ voltage input)0.1
      step width of the gain setting (charge input) (mV/pC)0.01
      Precision (ICP®-/ voltage input) (amplification factor 0, 01 x … 0, 04 x)≤5%
      precision (ICP®-/ voltage input) ( Amplification factor 0, 05 x …?200 ?)≤1%
      accuracy (charge input) (amplification factor 0.01 … 0.04 mV / pC)±6%
      Accuracy (charge input) (amplification factor of 0.05 … 2.000 mV / pC)≤1%
      entrance (load input)100,000 pC pk
      Input range (ICP®-/ voltage input)10 V pk[6]
      Input range (ICP®-/ voltage input, minimal)5 V pk
      lower limiting frequency (ICP®-/ voltage input) (-5%)≤ 0.05 Hz
      Lower limiting frequency (charge receipt) (-5%)0.5 Hz[4]
      upper frequency limit (amplification factor 0.01 … 99.9) (-3 dB)> 100,000 Hz
      Upper frequency limit (gain 100 … 2,000) (-3 dB)> 80,000 Hz
      filter typeeighth order Butterworth lowpass
      Corner frequency of the electrical filter (-10%)0.1/0.3/1/3/10/30000 Hz[5]
      edge steepness of the filter160 dB/decade
      The passband of the filter frequency response accuracy0.01
      phase shift (at 1,000 Hz)±2 °
      Linearity error0.01
      crosstalk≤ 72 dB
      TEDS reader functionYes
      bias voltage/error (via LEDs) displayOpen circuit/short circuit/overload
      Digital interface
      digital interfaceEthernet
      conditions of use
      temperature range (operation)32 … 120 ° F0 … 50 ° C
      specifications
      power supplyvoltage[3]
      voltage (47 … 63 Hz)100 … 240 V AC
      power≤ 0.7 A[3]
      supply voltage (for Sensor)> 24 V DC
      constant power supply (for sensor)2 … 20 mA[1]
      10 V pkOverload threshold (±0. 5 V pk)
      DC Offset< 50 mV
      output range (minimum)10 V
      Load of the output (minimum)10 mA
      output impedance< 50 Ω
      wide band noise (Verstä rkungsfaktor 1 x) (1 … 10,000 Hz)50 µV/rms[2]
      spectral noise (1 Hz)8 µV / √ Hz[2]
      spectral noise (10 Hz)2 µV / √ Hz[2]
      spectral noise (100 Hz)0.7 µV / √ Hz[2]
      spectral noise (1,000 Hz)0.7 µV / √ Hz[] 2]
      spectral noise (10,000 Hz)0.6 µV / √ Hz[2]
      wide band noise (amplification factor 10 x) (1 … 10,000,000 Hz)75 µV RMS[2]
      spectral noise (1 Hz)18 µV / √ Hz[2]
      spectral noise (10 Hz)1.5 µV / √ Hz[2]
      Spectral noise (100 Hz)1.0 µV / √ Hz[2]
      spectral noise (1,000 Hz)1.0 µV / √ Hz[2]
      spectral noise (10,000 Hz)1.0 µV / √ Hz[2]
      wide band noise (gain 100 x) (1 … 10,000 Hz)350 µV rms[2]
      spectral noise (1 Hz)100 µV / √ Hz[2]
      spectral noise (10 Hz)10 µV / √ Hz[2]
      Spectral noise (100 Hz)6 µV / √ Hz[2]
      spectral noise (1,000 Hz)5 µV / √ Hz[2]
      Spectral noise (10,000 Hz)5 µV / √ Hz[2]
      wide band noise (amplification factor 1 mV / pC) (1 … 10,000 Hz)52.0 µV/rms[2]
      Spectral noise (1 Hz)10.0 µV / √ Hz[2]
      spectral noise (10 Hz)1.5 µV / √ Hz[2]
      Spectral noise (100 Hz)0.6 µV / √ Hz[2]
      Spectral noise (1,000 Hz)0.6 µV / √ Hz[2]
      Spectral noise (10,000 Hz)0.6 µV / √ Hz[2]
      wide band noise (gain 10 mV / pC) (1 … 10,000 Hz)52.0 µV/rms[2]
      Spectral noise (1 Hz)14.0 µV / √ Hz[2]
      spectral noise (10 Hz)2.0 µV / √ Hz[2]
      Spectral noise (100 Hz)0.7 µV / √ Hz[2]
      Spectral noise (1,000 Hz)0.7 µV / √ Hz[2]
      spectral noise (10,000 Hz)0.7 µV / √ Hz[2]
      Wide band noise (gai≥ 100 MΩ / pC) (1 … 10,000 Hz)56.0 µV/rms[2]
      spectral noise (1 Hz)15.0 µV / √ Hz[2]
      Spectral noise (10 Hz)2.0 µV / √ Hz[2]
      spectral noise (100 Hz)0.6 µV / √ Hz[2]
      Spectral noise (1,000 Hz)0.6 µV / √ Hz[2]
      Spectral noise (10,000 Hz)0.6 µV / √ Hz[2]
      integrated oscillator circuit (ICP/voltage) (± 2%)0.1 V pk
      Built-in oscillator circuit (load) (± 2%)100 pC pk
      oscillator frequency (± 2%)100/1,000 Hz
      physical properties
      Electrical connection (sensor input)BNC Jack
      electrical connection (output)BNC Jack
      electric Connection (Ethernet)RJ45
      size - height (nominal)1.75 in44.5 mm
      size - width (nominal)19 in482.6 mm
      size - depth (nominal)13.7 in348 mm
      dimensions8 lb3.6 kg
      notes
      [1]individually configurable for each channel preset ex works: 4 mA (±1. 0 mA).
      [2]typically
      [3]To use fuse: T1, 6A
      [4]the lower cut-off frequency tolerance: ±25%
      [5]tolerance: ±5%
      [6]Depending on the bias voltage of the connected sensor
      [7]details: see PCBs Declaration of conformance PS024
      supplied accessories ör
      017AXXcord-1
      EE75Configuration software "MCSC"-1
